Louisiana & North West Railroad

Standard Gauge

Headquarters: Gibsland, later Homer, LA

Years of Operation: 1890-present

Predecessor Roads: Louisiana North & South Ry

Successor Roads: none

Miles Operated: Main line: Magnolia, AR to Natchitoches, LA, 114.7 miles; leased (St. Louis Southwestern Ry. — Magnolia to McNBeil, AR), 6.40 miles — total, 121.10 miles.

Locomotives Owned:

Equipment

3/31/1890: Locomotives: 2. Cars: 2 passenger.

12/31/1899: Locomotives: 5. Cars: 2 passenger, 2 baggage, etc., 16 flat, 1 caboose.

6/30/1914: Locomotives: 9. Cars: 5 passenger, 2 combination, 2 baggage, etc., 41 box, 29 flat, 22 service.

6/30/1918: Locomotives: 9. Cars: 3 passenger, 2 combination, 3 baggage, etc., 23 box, 6 flat, 2 caboose, 24 service.

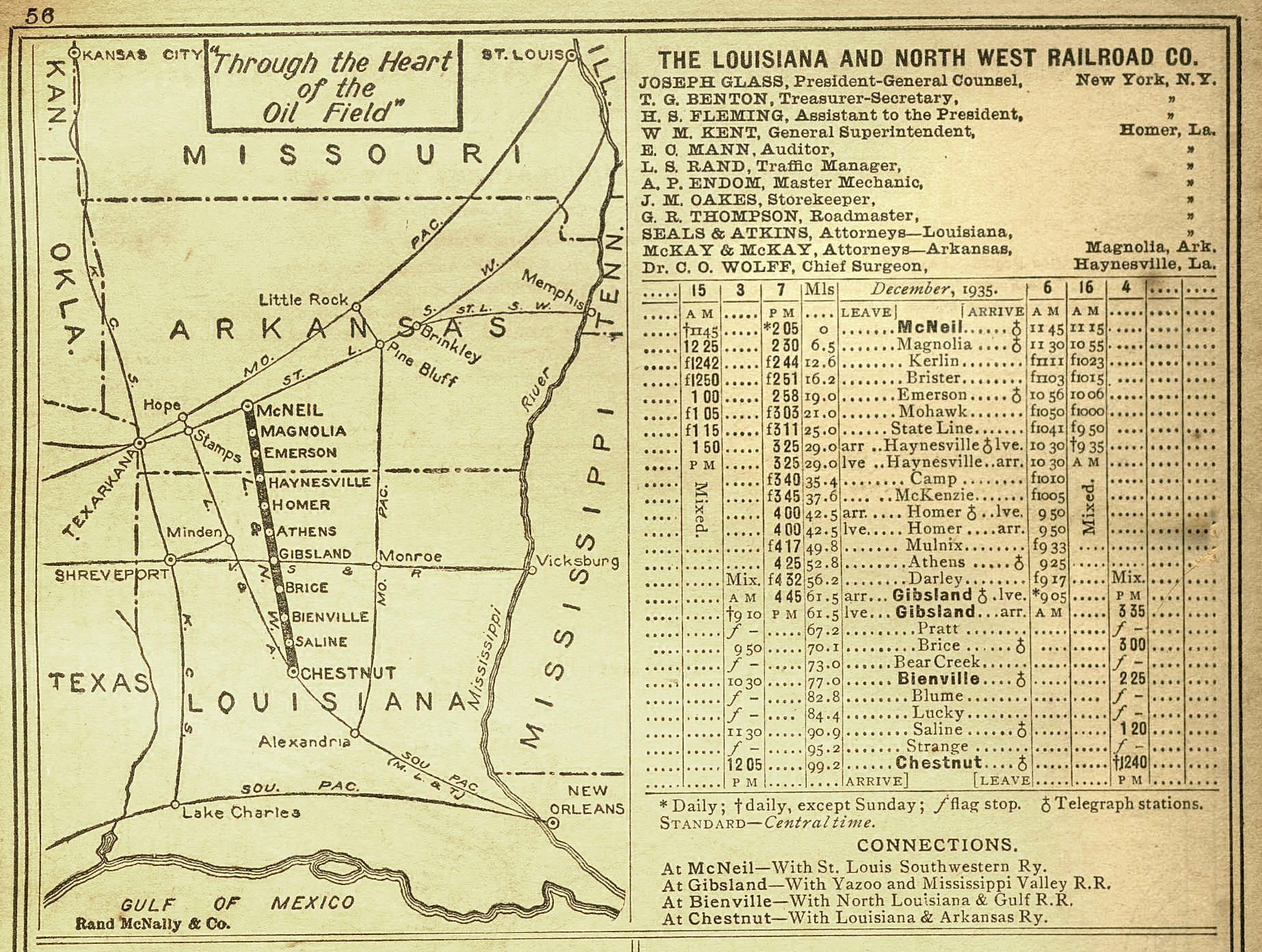

Click Map for Larger Version

HISTORY by Gil Hoffman:

Chartered as the Louisiana North & South Railroad on November 28, 1885. Road completed from Gibsland, LA to Homer, LA, 20 miles, toward the end of 1887 and opened for business on March 1, 1888. The extension from Gibsland to Bienville, LA was completed in 1889 and opened January 1, 1889. The road was constructed by J. D. Beardsley, contractor. Owing to a defective charter, the road was in 1889 as the Louisiana & North West Railroad and the property of the old company conveyed to the new on January 21, 1890. At the time of the new charter, the railroad was controlled by J. D. Beardsley through ownership of a majority of the capital stock. Authorized capital stock was $2,900,000.

 The line from Homer, La to Magnolia, AR, 35.70 miles, was built during 1897-98; from Bienville to Lucky, LA, 7.50 miles, during 1900-01; from Lucky to Saline, LA, 5.50 miles, during 1901-04; from Saline to Natchitoches, LA, 30.20 miles, during 1901-05, and in Natchitoches, 0/30 miles, during 1912. The total mileage of this construction was 79.20 miles. The line between Homer, LA and Magnolia, AR and between Bienville, LA and Natchitoches, LA were constructed under contract by J. D. Beardsley.The Magnola Branch of the St. Louis Southwestern Ry., from Magnolia to McNeil, AR, 6.40 miles, was leased for 20 years from August 1, 1898, at a rental of $3,980 per year.

 The railroad had joint use of the passenger station at Gibsland, LA, owned by the Vicksburg, Shreveport & Pacific.  Interchange connections were with the Louisiana & Arkansas at Chestnut, LA; with Louisiana Railway & Navigation Co., at Hagen, LA; with the North Louisiana & Gulf at Bienville, LA; with the St. Louis Southwestern Ry., at McNeil, AR; the Texas & Pacific at Natchitoches, LA, and the Vicksburg, Shreveport & Pacific at Gibsland, LA.

The country traversed was gently rolling with some flat stretches. The most imortant bridge on the road was across the Red River. This bridge was 525 feet in length.

 The United States District Court at New Orleans, on August 23, 1913, appointed George W. Hunter as receiver on application of the Baldwin Locomotive Works and other creditors.

REFERENCE



1.  “Louisiana & North West Railroad Company,” Valuation Docket No. 697, Interstate Commerce Commission Reports, Vol. 135, p. 849-880.





































STEAM ROSTER by Gil Hoffman:



Road No.



Type



Builder



C.N.



Date



Cyls.



Dri. Dia.



Engine

Wt.



Previous Ownership



Disposition



1



4-4-0



Baldwin



10419



11/1889



14x22



56



60000



Louisiana North & South Ry. #1

Louisiana & North West #1, on 1/21/1890.

Baldwin class 8-22 C 74



Dropped by 6/30/1918.



2



4-4-0



Baldwin



2408



4/1871



14x24



61



45000



Junction & Breakwater R.R. New York, Lewes, DE

Delaware, Maryland & Virginia #3, in 6/1883.

Re. #253.

Philadelphia, Wilmington & Baltimore R.R. #108,

in 8/1885.

New York Equipment Co., New York, NY (dealer),

in 2/1888.

Louisiana & North West #2, by 3/1890.

Baldwin class 22½ C 27



Dropped by 6/30/1918.



3



4-4-0



Baldwin



13714



9/1893



16x24



62



74000



New. Cost $8,260.

Baldwin class 8-26 C 511



Dropped by 6/30/1918.



4



2-6-0



Baldwin



15938



5/1898



17x24



54



95000



New. Cost $8,033.75.

Baldwin class 8-28 D 161



Dropped by 6/30/1918.



5



2-6-0



Baldwin



15939



5/1898



17x24



54



95000



New. Cost $8,033.75.

Baldwin class 8-28 D 162



In service 6/30/1918.



6



2-8-0



Baldwin



10490



12/1889



20x24



50



116000



Cresson, Clearfield County & New York Short Route R.R. #4 Anthony S. Morrow, Cresson, PA

Pennsylvania R.R. #1517, in 6/1893.

Boise, Nampa & Owyhee Ry., Nampa, ID, in 3/1897.

Louisiana & North West #6, ca. 1900.

Baldwin class 10-34 E 1023



Dropped by 6/30/1918.



7



2-6-0



Baldwin



21668



2/1903



18x24



56



110000



New. Cost $9,900.

Baldwin class 8-30 D 610



Southern Iron & Equipment Co. #2078, in 1/1926.



8



2-6-0



Baldwin



22102



5/1903



18x24



56



110000



New. Cost $9,900.

Baldwin class 8-30 D 611



In service 6/30/1918.



9



4-4-0



Baldwin



22183



5/1903



16x24



64



90000



New. Cost $9,000.

Baldwin class 8-26 C 556



In service 6/30/1918.



10



2-8-0



Baldwin



24805



11/1904



19x24



50



125000



New. Cost $10,885.

Baldwin class 10-32 E 47



Louisiana & Arkansas Ry. #150,

ca. 1910.

Grace Logging Co., Castor, LA,

in 6/1922.

Weber-King Manufacturing Co. #110, Barham, LA



11



2-8-0



Baldwin



24835



11/1904



19x24



50



125000



New. Cost $10,885.

Baldwin class 10-32 E 48



Gainesville Midland R.R. #102, Gainesville, GA, in 1905.

Southern Iron & Equipment Co. #1861

Fountain-Campbell Lumber Co. #4, Ladysmith, WI, on 3/8/1924.

Roddis Lumber & Veneer Co., Park Falls, WI, in 1936.



21



2-6-0



Rhode

Island



1704



11/1886



19x24



52½



104300



Vicksburg & Meridian R.R. #165

Alabama & Vicksburg Ry. #411, in 5/1889.

Louisiana & North West #21, in 1907.



Southern Iron & Equipment Co. #2079, in 1/1926.



22



4-6-0



Baldwin



37003



9/1911



18x26



56



130500



New. Cost $12,261.

Baldwin class 10-30 D 599



Scrapped



23



4-6-0



Baldwin



37004



9/1911



18x26



56



130500



New. Cost $12,261.

Baldwin class 10-30 D 600



Scrapped



24



4-6-0



Baldwin



37005



9/1911



18x26



56



130500



New. Cost $12,261.

Baldwin class 10-30 D 601



Davis Brothers Lumber Co. #24, Ansley, LA



25



4-6-0



Baldwin



39266



2/1913



18x26



56



130500



New. Cost $12,360.

Baldwin class 10-30 D 632



North Louisiana & Gulf R.R. #25, Hodge, LA, by 2/1926.

Scrapped 1950.



26



4-6-0



A/Schen.



29786



5/1904



19x26



62



140000



Newton & Northwestern R.R. #10, Boone, IA

Birmingham Rail & Locomotive Co. #1417.

Louisiana & North West #26, on 9/26/1921.







27



4-6-0



A/Schen.



29787



5/1904



19x26



62



140000



Newton & Northwestern R.R. #12, Boone, IA

Bellefonte Central R.R. #12, Bellefonte, PA, in 1920.

Louisiana & North West #27, in 9/1921.



Southern Iron & Equipment Co. #2080, in 1/1926.



28



2-8-0



A/Rich.



30150



10/1904



20x24



50



139000



Mississippi River & Bonne Terre #13, Bonne Terre, MO

Louisiana & North West #28, on 3/6/1922.



North & South Ry. #101, in 1929.



29



2-8-0



A/Rich.



30151



10/1904



20x24



50



139000



Mississippi River & Bonne Terre #17, Bonne Terre, MO

Louisiana & North West #29, on 3/6/1922.



North & South Ry. #102, in 1929.



30



4-6-0



Baldwin



27055



12/1905



19x26



58



144000



Alabama & Vicksburg Ry. #445

Louisiana & North West #30, in 3/1922.

Baldwin class 10-32 D 947







31



4-6-0



Baldwin



29328



10/1906



19x26



58



144000



Alabama & Vicksburg Ry. #446

Louisiana & North West #31, in 3/1922.

Baldwin class 10-32 D 983







32



4-6-0



Baldwin



30004



1/1907



19x26



55



145000



Alabama & Vicksburg Ry. #443

Louisiana & North West #32, in 3/1922.

Baldwin class 10-32 D 986



Out of service by 7/1935.



33



4-8-0



Brooks



3603



8/1900



20x26



55



170400



Buffalo, Rochester & Pittsburgh Ry. #239

Southern Iron & Equipment Co. #1477.

Wisconsin-Alabama Lumber Co. #5, Sylacauga, AL, on 12/31/1919.

Southern Iron & Equipment Co. #2083.

Louisiana & North West #33, in 1/1926.



Scrapped 1933.



34



2-8-0



A/Brooks



28255



12/1903



22x30



57



199000



Cleveland, Cincinnati, Chicago & St. Louis Ry. #766

Re. #6608 in 1905.

Louisiana & North West #34, in 1929.







35



2-8-0



A/Brooks



28245



12/1903



22x30



57



199000



Cleveland, Cincinnati, Chicago & St. Louis Ry. #756

Re. #6598 in 1905.

Louisiana & North West #35, in 1929.







36



2-8-2



Baldwin



52665



12/1919



20½x28



48



179000



Sewell Valley R.R. #7, Rainelle, WV

Chesapeake & Ohio Ry. #2910, in 7/1927.

Georgia Car & Locomotive Co. #669 - Birmingham Rail & Locomotive Co. (joint account).

Louisiana & North West #36, on 3/3/1930.

Cost $4,500.

Baldwin class 12-34¼ E 55







37



2-8-2



Baldwin



43561



6/1916



20x28



48



174500



Arizona Lumber & Timber Co. #1, Flagstaff, AZ

St. Louis, Troy & Eastern R.R. #7, East St. Louis, IL, in 1917.

Georgia Car & Locomotive Co. #630.

Louisiana & North West #37, in 1/1930. Cost $15,000.

Baldwin class 12-34¼ E 40







38



2-6-0



Baldwin



19962



1/1902



20x28



56½



167200



Illinois Central R.R. #591

Re. #3750 on 8/12/1937

Re. #3712 on 4/30/1943.

Louisiana & North West #38, on 8/16/1945.

Baldwin class 8-34 D 187







39



2–6-0



Baldwin



33243



3/1909



20x28



57



160000



St. Louis Southwestern Ry. #455

Louisiana & North West #39, on 8/24/1946.

Baldwin class 8-34 D 519



Retired 1950.
